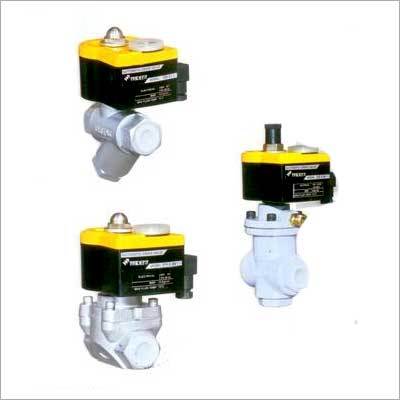

Industrial Drain Valve

Industrial Drain Valve
Industrial Drain Valve
Product Code : 20
Product Description

Industrial Drain Valve

With rich industry experience and knowledge, we are involved in offering our clients supreme quality Drain Valve. The valve is time controlled, which activates and flushes the sludge at regular time intervals. Further, this valve is directly sourced from the company, which ensures its utmost quality. The offered valve is highly appreciated for their qualities such as hassle free performance, high durability and easy installation. This Drain Valve is available in 3 different options like direct acting, diaphragm type and external pilot assisted piston valve. Our valves are largely preferred in states of Jharkhand, West Bengal, Assam, North-East & Odissa

Operation:

The drain is controlled by a timer. The timer module periodically activates the valve. The valves are designed for dirty liquid and handle all types of condensate. There are 3 basic models. The direct acting models have 1.3 mm orifice. The diaphragm type has 8mm orifice and external pilot assisted piston valve has orifice upto 24mm.

Salient Features:

  • Proven Reliability
  • All digital Electronic Circuit for time control
  • Water proof IP 55 enclosures, ideal for outdoor installations
  • A wide network for after-sales service
  • Available in 64 models to suit all applications
  • Optional: Explosion proof enclosure for hazardous areas
  • Pressure upto 70 kg/cm2(g).
Applications:

Trident condensate timer drain valves are suitable for all compressed air systems like:
  • Receivers
  • Dryers
  • Heat Exchangers
  • Circuit Breakers
  • Locomotives
  • Earth Moving Equipment

Specifications:

Specification EDV EDV-DM EDV-HD EDV-ORV UNIT
Power Consumption:
Valve open
Valve closed
10
1
19
1
09
1
10
1
Watts
Watt
Valve open during cycle time 8 4 4 4 secs
Valve connection size 1/2" 1/2" 1/2" 1/4" BSP
Max. Fluid Temperature 75 75 75 75 °c
Weight 0.75 0.9 1 0.65 kgs.
Environmental Protection IP 55 IP 55 IP 55 IP 55
Maximum working pressure 70 35 15 7 Kg/cm2(g)
Dimension L x B x H 142x102x
156
142x102x
148
142x102x
193
142x102x
114
mm
Valve orifice 1.3 8 12.5 2.5 mm
Valve Coefficient (KV) 1 8 16 2 lpm of water @1 Kg/cm2(g)
Din connector DIN 43650 with cable 2 core (4.5-6mm) rated for 3 Amps
Maximum discharge at 7 bar 29 115 200 24.8 litres/hr
